84-PCR1251-0010 Geovision GV-PCR1251 125KHz Enrollment Reader

Features:

• Model Number: GV-PCR1251
• Manufacturer SKU Number: 84-PCR1251-0010
• Ordering Part Number: 520-PCR1251
• USB card reader, supporting 13.56 MHz
• Designed to assist with GV‐AS ID Card / Key Fob enrollment to GV‐ASManager

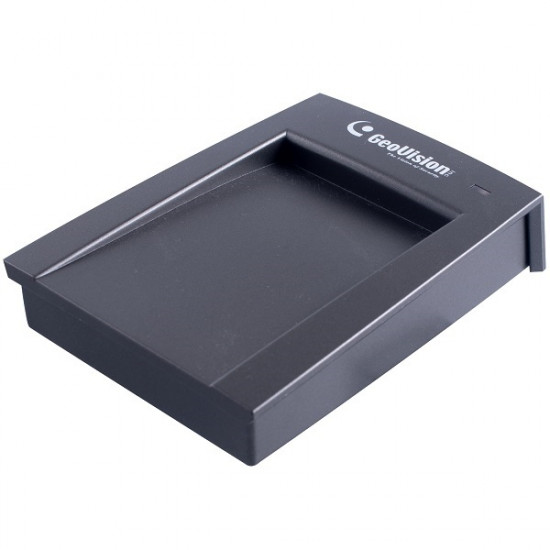

GV‐PCR1251 is a USB card reader, supporting 125 kHz, designed to assist with GV-AS ID Card / Key Fob enrollment to GV‐ASManager. It reads the identification number of a detected GV-AS ID Card / Key Fob and emulates typing of the ID number to GV‐ASManager, or any other software desired. The user can conveniently establish user accounts on GV‐ASManager by placing cards / key fobs of 125 kHz onto the GV‐PCR1251 Enrollment Reader.

Specifications

System Requirements

• OS - 32‐bit: Windows 7 / 8 / 8.1 / 10
  64‐bit: Windows 7 / 8 / 8.1 / 10 / Server 2012 / 2012 R2 / 2016
• GV‐ASManager Version - All versions

Operational

• Frequency - 125 kHz
• Max. Distance - 2 cm
• Read Time - 200 ms
• Read Interval - 0.5 s

Environmental

• Operating Temperature - 32~122°F
• Operating Humidity - 0 ~ 90% RH (non‐condensing)

Mechanical

• LED Indicator - 1 LED (dual‐color; power, enrollment)
• Connector - USB
• Dimensions - 4.3 x 3.1 x 1.02"
• Cable Length - 55"
• Weight - .35 lb

Others

• Certifications - CE, FCC, RoHS

84-PCR1251-0010 Specification Sheet
