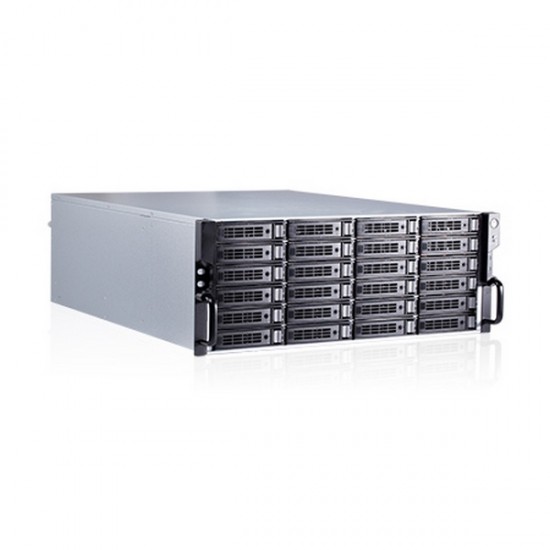

85-EXPANSI-0001 Geovision GV-Expansion System 24-Bay - No HDD

Specification

System

• SAS Port - 6 Gbps SAS port x 2
• No. of Hot Swap Drive Bays - 24
• HDD Type - SATA II / III
• Power - Output: 550 W x 2
• Input: 100 ~ 230V, 50 ~ 60 Hz
• Fan - Hot pluggable and redundant fan x 3

Physical

• LED Indicator - Yes (Power, HDD, Status, Access)
• Color - Black
• Form Factor - 4U 19 inch rackmount chassis
• Dimensions (W x H x D) - 481 x 176 x 550 mm / 19 x 7 x 22 in
• Weight - 34 kg / 75 lb (Diskless)
• Regulatory - CE / FCC / BSMI / C-Tick / LVD

Environment

• Operating Temperature - 0 ~ 40°C / 32 ~ 104 °F
• Humidity - 5 ~ 95% RH (non-condensing)
