- Brand: Geovision
- Model: 55-VR128-000
- SKU: 55-VR128-000
- UPC: 471709510600
- MPN: 250-VR128-000
- Model Number: GV-Video Gateway
- Manufacturer SKU Number: 55-VR128-000
- Sales Part Number: 250-VR128-000
The GV‐Video Gateway is a video streaming server designed for large‐scale video surveillance deployments. It can receive up to 128 IP cameras from various IP video devices. Then it can simultaneously distribute up to 300 channels to its clients which include GV‐System (DVR/NVR system), GV‐GIS (geographic information system), GV‐Control Center (central monitoring system) and Multi View (viewing software). Through the GV‐Video Gateway, the CPU loading of IP video devices is significantly minimized and the desired frame rates are reached as well as the bandwidth usage is greatly reduced.
Manufacturer Part Number: 55-VR128-000
Model Number: GV-Video Gateway
- Video gateway between IP cameras and receiving clients (GV‐System, GV‐GIS, GV‐Control Center, GV‐IP Matrix and Multi View)
- Maximum video distribution for large IP camera counts (up to 128 IP cameras) and receiving clients (up to 300 IP cameras)
- Passive and Active connection methods
- Compatibility with a variety of third‐party IP video devices
- Single‐channel or multi‐channel live view through IE browser
- Bandwidth monitoring
- Two‐way audio communication (only for General Hosts)
- Solution for Mobile DVR (GV‐Video Server, GV‐Compact DVR) to obtain a public IP address

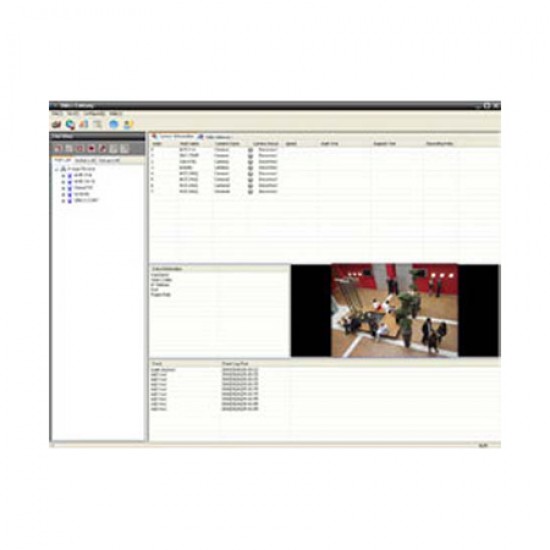

- Web interface for live image monitoring, multicast streaming and event log query
Specifications:
| Feature | Device |
|
Number of IP Video Device Connections |
128 channels |
|
Number of Remote Client Connections |
300 channels |
|
Active Connections |
Yes |
|
Passive Connections |
Yes (only for GV IP devices) |
|
3rd Party IP Cameras Support |
Yes |
|
Live Viewing |
Single Live View |
|
Recording |
No |
|
E-Mail Notification |
Yes (for Camera Connection Lost, GV-USB Dongle Removed, Connection Lost of Passive Hosts) |
|
SMS Notification |
No |
|
2-Way Audio |
Yes (only for Active Hosts) |
|
GPS support |
Yes (for the first 32 connected IP cameras) |
|
Number of Accounts |
1 for Supervisor, 1,000 for Users |
|
Mobile Phone Support |
No |
|
Bandwidth Control |
No |
|
IE Live View |
Yes (up to 16 channels) |
|
IE Event Query |
Yes |
|
IE I/O Control |
Yes |
