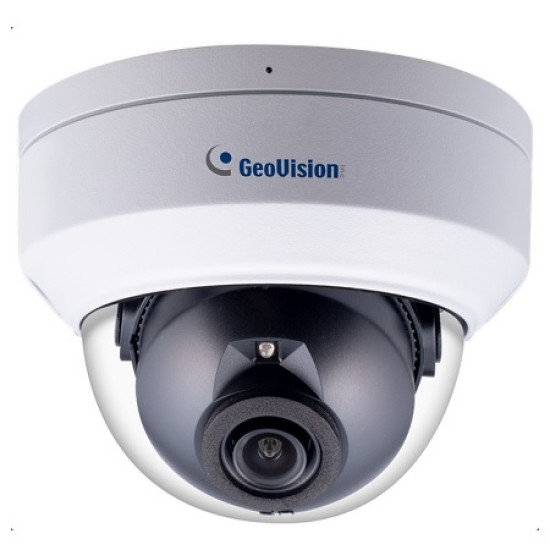

GV-TDR2705-2F Geovision 2.8mm 30FPS @ 1080p Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Features:

• Model Number - GV-TDR2705-2F
• Manufacturer SKU Number: 84-TDR2705-2F10
• Ordering Part No. : 125-TDR2705-2F10
• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Dual streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Built‐in micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) for local storage

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.

Specifications

Camera

• Image Sensor - 1/2.7" progressive scan CMOS
• Picture Elements - 1920 (H) x 1080 (V)
• Minimum Illumination
  • Color - 0.01 Lux (F2.0, AGC ON)
  • IR ON - 0 Lux
• Shutter Speed - Auto / Manual (1 ~ 1/100,000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - Up to 52 dB
• WDR Pro - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - 2 MP
• Day / Night - Yes (with removable IR-cut filter)
• Lens Type - Fixed
• Focal Length - 2.8 mm
• Maximum Aperture - F/2.0
• Mount - Ø 12 mm
• Horizontal FOV - 112.9°
• Operation
  • Focus - Fixed
  • Zoom - Fixed
  • Iris - Fixed
• IR LED Quantity - 1 IR LED
• Max. IR Distance - 30 m (100 ft)

DORI

• Lens - 2.8 mm
• Detect - 42m (137.7 ft)
• Observe - 16.8 m (51.1 ft)
• Recognize - 8.4 m (27.5 ft)
• Identify - 4.2 m (13.7 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Dual streams from H.265, H.264 or MJPEG
• Video Resolution
  • Main Stream - 1920 x 1080 (Default), 1280 x720
  • Sub Stream - 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default)
• Frame Rate - 30 fps at 1920 x 1080 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
• Maximum throughput - 50 Mbps
• Maximum streams *When the total bitrate is within the maximum throughput - 6
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion *Tampering Alarm, Audio Detection, Cross Line, Intrusion are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Saturation, Contrast, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format)
• Audio Compression - G.711
• Audio Support - One‐way audio

Network

• Interface - 10/100 Ethernet
• Protocol - ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Camera Angle Adjustment
  • Pan - 0° ~ 360°
  • Tilt - 0° ~ 68°
  • Rotate - 0° ~ 360
• Connectors
  • Power - DC Jack (DC 12 V, 1.25 A), PoE
  • Ethernet - RJ-45 connector
  • Audio - Built-in microphone - Yes, External microphone required - No, Built-in speaker - No, External speaker required - No
• Connectors
  • Local Storage - Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) *UHS‐II card type is not supported

General

• Operating Temperature- -30 °C ~ 60 °C (-22 °F ~ 140 °F)
• Humidity - 0% ~ 95% (no condensation)
• Power Source - 1.25A 12V DC / PoE (IEEE802.3af)
• Max. Power Consumption - 5.0 W
• Dimensions - Ø 109 x 83 mm (Ø 4.3” x 3.3”)
• Weight - 0.36 kg (0.79 lb)
• Ingress Protection - IP67
• Vandal Resistance - IK10
• Certification - FCC, CE, RoHS, UL compliant

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or GV‐IP Device Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

• Software Supported - GV‐VMS (V17.4.7 / V18.3.2 or later), GV‐Control Center (V4.2.1, coming soon), GV‐Recording Server / Video Gateway (V2.1.1 or later), GV‐Edge Recording Manager Windows Version (V2.2.7 or later)
• Smart Device Access - GV-Eye for iOS / Android (V3.1.1 or later)
• Live Viewing - Browser (IE, Edge, Chrome, Firefox), Mobile App
