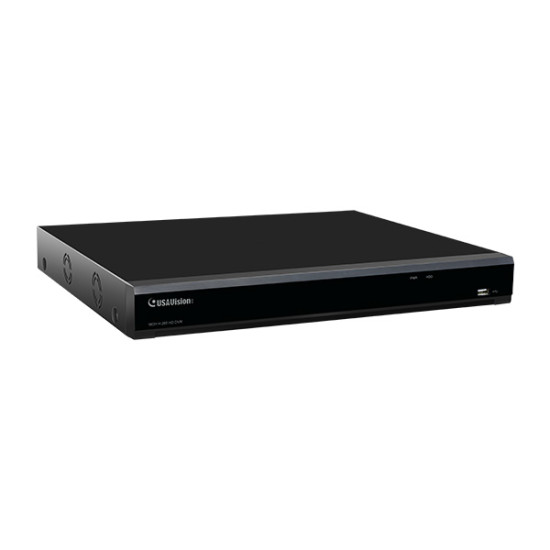

UA-XVR1620 UVS Line 16 Channel HD-TVI/HD-CVI/AHD/Analog + 8 Channel IP DVR Up to 160FPS @ 8MP - No HDD

Features:

• Model Number: UA-XVR1620
• Manufacturer SKU Number: 710-XV01620-000
• Sales Part Number: 84-XV01620-UA0U
• AI deep learning: AI Perimeter Protection & Classification (Human & Vehicle)
• Realtime AI Face Recognition (search, tracking, attendance and repeated recognition request)
• Support H.265 / H.264 video formats
• 16-ch TVI / AHD / CVI / CVBS video input
• 8-ch IP camera input
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840 x 2160) resolution
• HDMI and VGA simultaneous output
• 2 SATA HDD up to 10 TB for each disk
• 16 alarms inputs and 1 alarm output
• Complies with Section 889 of the NDAA

UA-XVR1620 is a powerful H.264 / H.265 HD DVR and supports 16-channel analog camera and 8-channel IP camera inputs, totaling a connection of up to 24 channels. It converts analog signals into high-resolution digitized images up to 8 megapixels. Featuring 4-in-1 video output, UA-XVR1620 supports TVI/AHD/CVI/CVBS connection.

Specifications

System

• Operating System - Embedded Linux
• No. of Drive Bay - 2 (3.5” / 2.5” SATA HDD)

Video

• Video Standard - NTSC, PAL
• Video Input
  • Analog camera - 16 channels (up to 24 channels for analog cameras and IP cameras)
  • IP Camera - 8 channels (up to 24 channels for IP cameras only)
• Compression - H.265 / H.264
• Signal Type - TVI / AHD / CVI / CVBS, *3 MP / 5 MP resolution is not supported by CVI signal

Recording Resolution

Analog Camera

• Main Stream
  • 8 MP at 10 fps for each channel
  • 5 MP at 15 fps for each channel
  • 4 MP at 20 fps for each channel
  • 1080P at 25 fps (PAL) / 30 fps (NTSC) for each channel
• Sub Stream
  • PAL: 10 fps at 704 x 576 for each channel
  • NTSC: 10 fps at 704 x 480 for each channel, *H.264 performance is about 20% lower than H.265
• IP Camera
  • 50 Hz: Max. 25 fps for each channel
  • 60 Hz: Max. 30 fps for each channel, *The frame rate may vary depending on the resolution set on the IP camera.

Display Resolution

• Analog Camera
  • 8 MP at 15 fps for each channel
  • 5 MP at 20 fps for each channel
  • 4 MP / 1080P /720P / 960H at 30 fps for each channel
• IP Camera - 8 MP / 4 MP / 3 MP / 1080P / 720P, *Single-channel preview up to 8 MP 30 fps., *Multi-channel preview is only available in sub-stream
• Playback Resolution
  • 8 MP at 160 fps
  • 5 MP at 240 fps
  • 4 MP at 320 fps
  • 1080P at 480 fps. *A maximum of 16 playback channels is applicable to each resolution.
• Max. Bandwidth
  • Input - 64 ~ 192 Mbps
  • Output* - 192 Mbps
• Video Adjustment - Hue, Brightness, Contrast, Saturation, Sharpness
• Dual Streams - Yes
• Playback Function
  • Fast Forward - 2x, 4x, 8x, 16x
  • Slow Forward - 1/2x, 1/4x, 1/8x, 1/16x

Audio

• Audio Input - 16 RCA ports
• Compression - G.711
• Audio Support - One-way

Management

• Event Management
  • Trigger - Schedule, Alarm Output, Motion Detection
  • Action - Store Video (AVI format), Send e-mails with captured images, Upload captured images to FTP Server, Activate relay outputs to control external devices
• Remote Monitoring - IE 10 / 11, Safari V12.1 or later, Firefox V52 or later, Google Chrome V57 or later, Edge V79 or later
• Language
  • Local - Arabic / Bulgarian / Traditional Chinese / Danish / English / German / Spanish / French / Japanese / Italian / Portuguese / Russian / Turkish / Finnish / Greek / Hebrew / Hindi / Korean / Persian / Polish / Romanian / Thai /Holland
  • Web - English / German / Spanish / French / Japanese / Italian / Portuguese / Russian / Turkish
• Maintenance - Firmware upgrade through Web Browser or Utility

Network

• Protocol - DHCP, DynDNS, HTTP, NTP, RTSP, TCP, UDP
• Security Feature
  • No default ID and password
  • HTTPS with an SSL certificate stored within the video server
  • IP address filtering

Interface

• Video Input - 16 BNC ports (1.5 Vp-p, 75 Ω)
• Audio - 16 in / 1 out, RCA
• Alarm Input / Output - 16 in / 1 out
• RS485 - RS-485 +/-
• Ethernet - RJ-45, 100/1000 Mbps
• USB - 2 ports (USB 2.0 front / USB 3.0 rear)
• E-SATA - 1 port
• Monitors
  • BNC - 1 port (704 x 576)
  • VGA - 1 port (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080)
  • HDMI - 1 port (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440 (2K), 3840 x 2160 (4K))
• LED - 2 LEDs: Power, HDD

General

• Operating Temp. - 0°C ~ 40°C (32°F ~ 104°F)
• Humidity - 0 ~ 90% RH
• Dimensions (L x W x H) - 378 x 328 x 52 mm (14.88” x 12.91” x 2.05”)
• Weight - 2.94 kg (6.49 lb)
• Rack Mount - Yes
• Power
  • Input - AC 100 ~ 240V, 50 ~ 60 Hz
  • Output - DC 12 V, 5.0 A, Max. 60 W
• Power Consumption - 20 W (excluding HDD)
• Regulatory - CE, FCC, LVD, RoHS compliant

AI Integrated Function

• Video Analytics - Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare Sound Detection, *When connected to analog cameras, FD (Face Detection) and PD&VD (Human & Vehicles Detection) can be enabled on a maximum of 8 channels at a time.
• Face Recognition - Face Search, Face Tracking on E-Map, Repeat Visitor Request, Face Attendance Request

Remote Viewing

• Access from Web Browser
  • Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm
  • Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download
  • Remote Setting: Channel (Live, Image control, Video Cover, Motion, Intelligent), Record (Encode, Capture), Alarm (Motion, I/O, Intelligent, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System
• Live View
  • PC-Based Software - Max. connection subject to the total output bandwidth of UA-XVR1620 *A total of up to 4-channel connection is supported for one non-IE browser
  • Mobile App - Max. connection subject to the total output bandwidth of UA-XVR1620
• Playback
  • PC-Based Software - Max. connection subject to the total output bandwidth of UA-XVR1620 *A total of up to 4-channel connection is supported for each Web browser.
  • Mobile App - Max. connection subject to the total output bandwidth of UA-XVR1620 *GV-Eye only supports single-channel playback.

Applications

• Software Supported - GV-Control Center (V4.1.0 with patch file V4.1.0.1), GV-Edge Recording Manager Windows Version (V2.2.3 with patch file V2.2.3.1), GV-VMS (V17.4.5 with patch file V17.4.5.15 / V18.3.1 with patch file V18.3.1.7, only analog channels supported), GV-Recording Server (V2.1.0)
• Mobile Phone Support - GV-Eye for iOS and Android (V2.9.1 or later)
