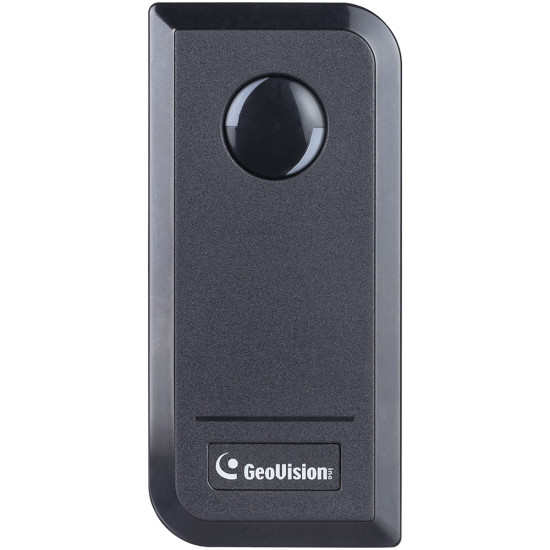

84-SR13520-0010 Geovision GV-SR1352 Outdoor 125kHz/13.56MHz Proximity Card Reader

Features:

• Model Number: GV-SR1352
• Manufacturer SKU Number: 84-SR13520-0010
• Sales Part Number: 510-SR1352-000
• Dual band frequency: 125 kHz, 13.56 MHz
• Weather-proof and IP66-compliant housing
• External LED control and external buzzer control

GV-SR1352 is a dual-band RFID card reader that recognizes access control cards. Featured with Wiegand outputs, GV-SR1352 can be connected to any Wiegand-compatible access control systems. Its dual-band capability offers great flexibility for integrators to solve card management issues on the locations, installed with both 125 kHz and 13.56 MHz readers. For outdoor use, GV-SR1352 comes with a weather-sealed and IP66-compliant housing.

Specifications

• Communication Interface - Wiegand
• RFID Frequency - Dual Band (13.56 MHz & 125 kHz), 125 kHz, 13.56 MHz ISO14443A
• Reading Range - 1 – 6 cm (0.3 – 2.3 in)
• Wiegand Interface - Wiegand 26 bits for 125 kHz, 26 / 34 bits for 13.56 MHz, distance 30 m (98.43 ft)
• Power Source - DC 9 ~ 24 V
• Power Consumption - 25 mA (max)
• LED - Bi-color LED (Red / Green)
• Beeper - Buzzer
• Color - Black
• Supported ID Format - UID only
• Operating Temperature - -4 °F ~ 140 °F
• Operating Humidity - 10 ~ 95% RH (non-condensing)
• Dimensions - 4.06" x 1.89" x 0.79"
• Weight - 33 lb
• Ingress Protection - IP66
• Certifications - CE, FCC
