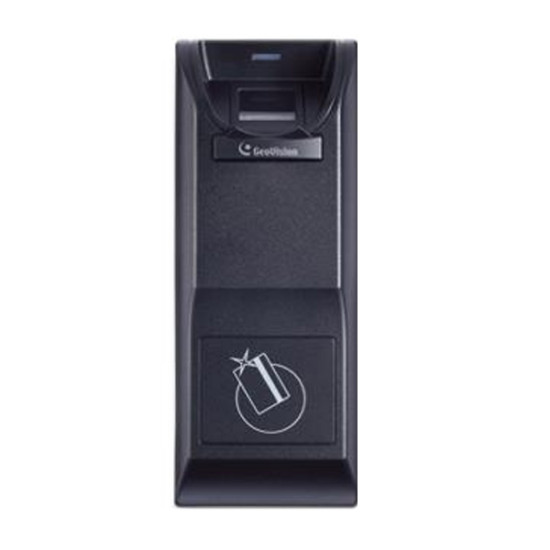

84-GF19220-2000 Geovision GeoFinger GF-1922 Optical sensor TCP/IP only 13.56MHz Fingerprint Reader

Features:

• Model Number: GV-GF1922
• Manufacturer SKU Number: 84-GF19220-2000
• Sales Part Number: 520-GF1922-000
• Work with GV‐AS / GV‐EV Controller and GV‐ASManager
• Can be a standalone fingerprint reader
• Three types of access modes: card only, fingerprint only and card plus fingerprint
• Fingerprint templates stored on the user card
• Connect with GV‐AS Controller through TCP/IP interface (WAN)
• Enroll fingerprints through TCP/IP connection with GV‐ASManager (Fingerprint Only Mode)


The fingerprint reader can work with GV‐AS / GV‐EV Controller and GV‐ASManager to create a complete access control system. Three types of operation modes are supported: Card + Fingerprint, Fingerprint Only and Card Only.

Specifications

• Application - Indoor use only

• Communication Interface - TCP/IP (10/100 Mps Ethernet, WAN)

• Sensor - Optical

• Sensing Area - 20 x 17 mm (0.79 x 0.67 in)
• Operation Mode - Fingerprint Only, Card + Fingerprint, Card Only

• Number of Fingerprints - Stored 1,900 (for Fingerprint Only mode)

• Supported Card - ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic), 13.56 MHz

• Output - DC 30V, 0.3A

• Input - 2 Ports, dry‐contact

• Power - DC 12V, Max 250mA
• Operating Temperature - 0~50° C (32~122° F) Humidity 10%~90%

• Dimensions (H x W x D) - 48 x 59 x 138 mm (1.89 x 2.32 x 5.43 in)

• Weight - 160 g (0.35 lb)

• Certification - CE, FCC
