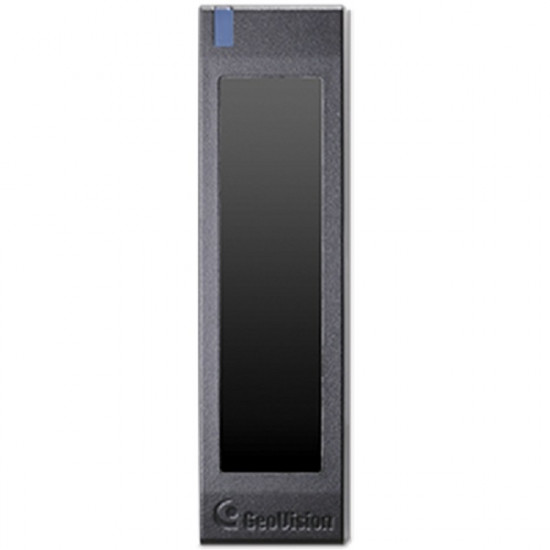

84-DFR1352-0200 Geovision GV-DFR1352 Outdoor Door Frame Card Reader

Features:

• Model Number: GV-DFR1352 card Reader
• Manufacturer SKU Number: 84-DFR1352-0200
• Sales Part Number: 520-DFR1352-000
• Card reader with weather-proof and IP66-compliant housing
• Wiegand interface supported
• RS-485 output: 9,600 bps, connect up to 8 GV-R1352 units
• 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Class)
• UL Listed

The GV-DFR1352 is a card reader designed to be installed on the door frame for recognizing identification cards. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-DFR1352 comes with a weather sealed and IP66 compliant housing for outdoor use.

Specifications

• CPU - 8 bit microprocessor
• Frequency - 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Class)
• Wiegand Interface - Wiegand 26 / 34 bit, distance 30 m / 98.43 ft
• RS-485 - 9,600 bps, connect up to 8 GV-DFR1352 units
• Power - DC 7.5V – 12V
• LED - Red, Green and Blue LED
• Beeper - Buzzer
• Color - Black
• Operating Temperature - -20 °C ~ 60 °C / -4 °F ~ 140 °F
• Operating Humidity - 10 ~ 90% RH (non-condensing)
• Dimensions (W x H x D) - 20.9 x 105.6 x 20.5mm / 0.8 x 4.2 x 0.8 in
• Weight - 80 g / 0.17 lb
• Certification - IP66, CE, FCC, RoHS
• CPU - 8 bit microprocessor

84-DFR1352-0200 Specifications
