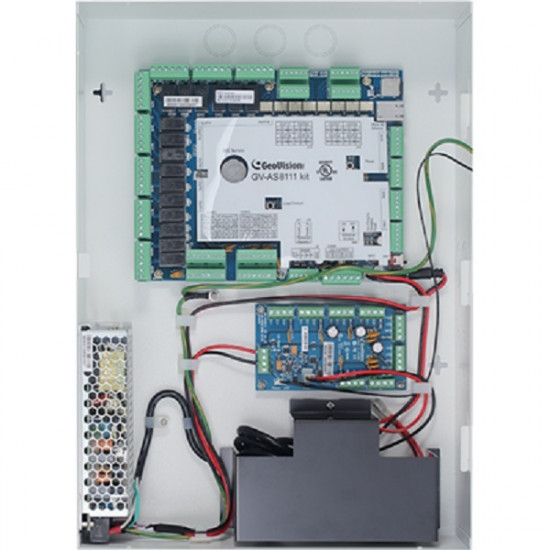

84-AS8111K-001U Geovision GV-AS8111 - 8 Door Access Controller Kit with Power Board & Iron Case

Features:

• Model Number: GV-AS8111 Kit
• Manufacturer SKU Number: 84-AS8111K-001U
• Sales Part Number: 590-AS8111-KIT
• One-way control: 8 doors
• Two-way control: 4 doors by Wiegand only; 8 doors by Wiegand, RS-485 and network
• 8 Wiegand card readers of 26 to 64 bits
• 16 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
• Built-in 16 inputs and 24 relay outputs
• Suitable for controlling doors, parking gates and access to elevator call buttons
• Support for tampering alarm
• UL Listed

Specifications

• CPU - 32‐bit ARM7TDMI
• Number of User Cards - 40,000 cards
• Event Buffer - 1,000,000 events and log data
• Power - AC 100~250 V , 50~60Hz
• Power - AC 100~250 V , 50~60Hz
• RS‐485 Interface - 2 RS‐485 interface for GV‐Readers and GV‐GF Fingerprint Readers (max. 16 Readers)
• Wiegand Interface - 8 Wiegand interfaces, 26~64 Bit format, 12V DC power supply, 200mA
• TCP/IP Interface - 1 TCP/IP interface for GeoVision network readers
• Communication - TCP/IP
• Battery - Replaceable button cell
• Input - 16 inputs, dry contact, NO/NC
• Output - 24 relay outputs
• Operating Temperature - 0 ~ 65 C / 32 ~ 149 F
• Operating Humidity - 10% ~ 90% RH (non-condensing)
• Dimension (W x H x D) - 210 x 187 x 40 mm / 8.27 x 7.36 x 1.57 in (base plate included)
• Weight -10 lb (base plate included)
• Certification - CE, FCC, RoHS

84-AS8111KT-001U Specifications
