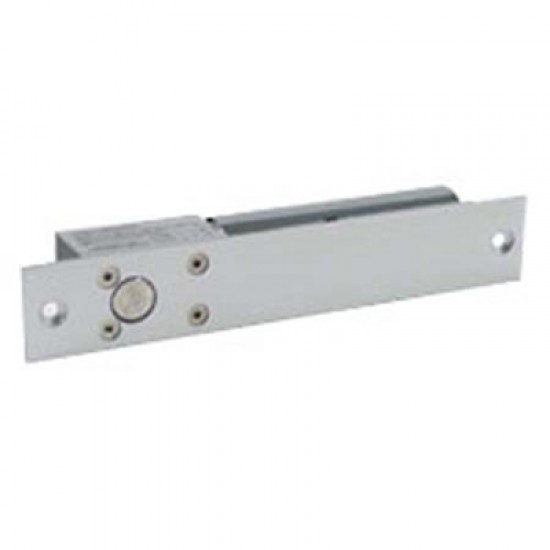

81-ML200-001 Geovision ML200SLD Electric Bolt

Features:

• Model Number: GV-EL202B
• Manufacturer SKU Number: 81-ML200-001
• Sales Part Number: 530-ML200-000

The ML200SLD is an electric bolt, featured with a stainless steel faceplate and a built-in voltage spike suppressor. It supports lock sensor and door status sensor functions. The fail-safe electric bolt locks the door when the power is applied, and unlocks the door when the power is removed. It can be applied to single-leaf or double-leaf doors.

Specifications

• Voltage - DC 12V or AC 24V
• Current - 0.9A (start); 0.3A (standby)
• Lock Sensor Switch Rating - 1A at AC/DC 30V
• Door Status Sensor Switch Rating - 0.5A at AC/DC 30V (magnetic reed switch)
• Auto Relock Jumper - 0, 2.5 and 5 seconds (adjustable)
• Dimension (L x W x H) - 202 x 35 x 43 mm / 7.95 x 1.38 x 1.69 in
• Weight - 0.9 kg / 1.98 lb
• Certification - CE, UL
